How can you identify an R.C.C floor slab from its thickness and size only?

Reinforced concrete (R.C.C) floor slab are used extensively in the construction industry due to their durability, strength, and resistance to fire and water. These slabs can be identified by their thickness and size alone, as they tend to be significantly thicker than other types of flooring, and their dimensions will depend on the span of the space they are supporting.

There are several factors to consider when identifying an R.C.C floor slab solely based on its thickness and size. These include the load-bearing capacity, the span of the space, the design of the building, and the materials used in the construction process.

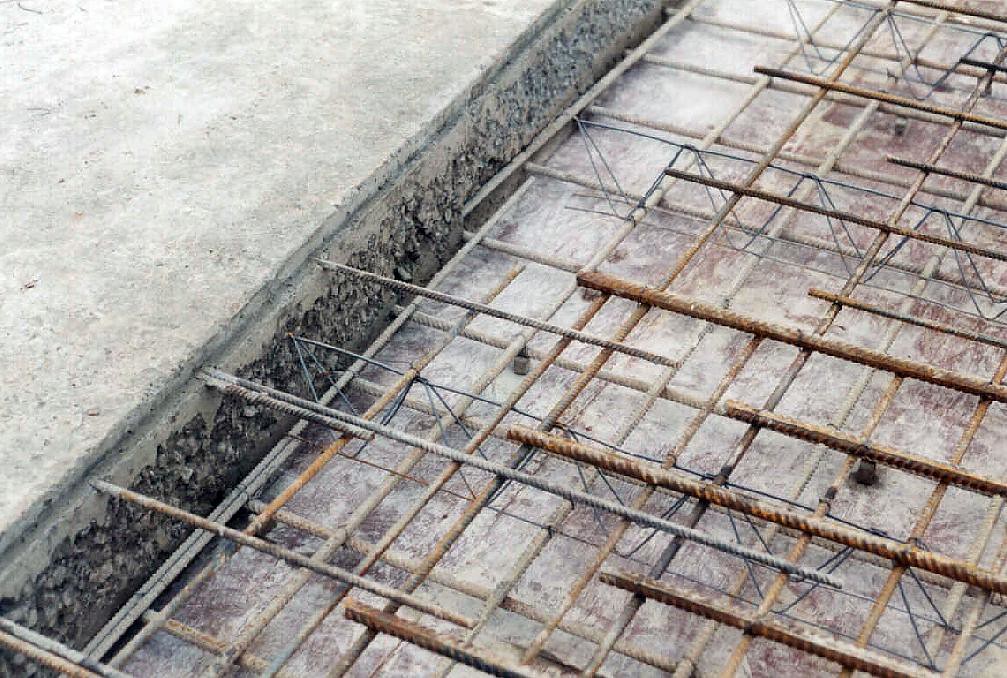

R.C.C floor slab
R.C.C floor slab

OUTLINE

The Load-Bearing Capacity

The Span of the Space

The Design of the Building

The Materials Used in the Construction Process

Conclusion

People also ask

What is the difference between floor and slab?

What is floor slab and roof slab?

What’s a concrete slab floor?

What are the types of slabs?

The Load-Bearing Capacity

One of the main ways to identify an R.C.C floor slab is through its load-bearing capacity. R.C.C slabs are designed to support heavy loads, which means they tend to be thicker than other types of flooring. The thickness of an R.C.C slab will depend on the load it is expected to support. For example, a floor slab that supports heavy machinery will be thicker than one that supports people walking.

In general, R.C.C floor slabs have a minimum thickness of 100 mm for residential buildings and 150 mm for commercial buildings. However, the thickness may vary depending on the load-bearing capacity of the slab. For instance, if the slab is designed to support a live load of 5 kN/m2, it will need to be at least 120 mm thick.

The Span of the Space

Another factor to consider when identifying an R.C.C floor slab is the span of the space it is supporting. The span refers to the distance between two supporting walls or columns. R.C.C slabs are used for large spans, which means they tend to be larger in size than other types of flooring.

The size of an R.C.C slab will depend on the span of the space it is supporting. For example, a slab that supports a span of 4 meters will be larger in size than one that supports a span of 2 meters. Generally, the size of the slab will be proportional to the span it is supporting.

The Design of the Building

The design of the building is another factor that can help identify an R.C.C floor slab. R.C.C slabs are commonly used in multi-story buildings that have multiple floors. In these buildings, the slabs are used as the floors between each level.

The design of the building will determine the thickness and size of the R.C.C slabs used. For example, a building with a basement will require a thicker slab on the ground floor to support the weight of the upper floors. In contrast, a building with a lightweight roof will require a thinner slab to support the roof.

The Materials Used in the Construction Process

Finally, the materials used in the construction process can help identify an R.C.C floor slab. R.C.C slabs are made using a combination of concrete and steel reinforcement. The concrete provides the compressive strength, while the steel reinforcement provides the tensile strength.

The thickness of the R.C.C slab will depend on the amount of steel reinforcement used. A slab with more steel reinforcement will be thicker than one with less reinforcement. Additionally, the size of the slab will depend on the amount of concrete used in the construction process.

Conclusion

In conclusion, there are several ways to identify an R.C.C floor slab solely based on its thickness and size. The load-bearing capacity, span of the space, design of the building, and materials used in the construction process all play a role in determining the thickness and size of the slab. By considering these factors, it is possible to identify an R.C.C floor slab and understand its purpose in the construction of a building.

People also ask

What is the difference between floor and slab?

In the context of construction, a floor and a slab are both horizontal elements that form part of a building’s structure.

However, there are some key differences between the two:

  1. Definition: A floor is the top surface of a room or other enclosed space, whereas a slab is a flat, horizontal structural element that is typically used to form the floors, ceilings, and roofs of buildings.
  2. Function: A floor is primarily designed to provide a flat, level surface for people to walk on and to support the weight of furniture and other objects. A slab, on the other hand, is designed to bear the weight of the building and to distribute it evenly across the foundation.
  3. Thickness: A floor is typically thinner than a slab, with a thickness of around 2-4 inches. A slab, on the other hand, is much thicker, with a typical thickness of 4-8 inches or more, depending on the specific requirements of the building.
  4. Reinforcement: A slab is often reinforced with steel bars or mesh to provide additional strength and prevent cracking, whereas a floor may not require such reinforcement.

.

What is floor slab and roof slab?

Floor slab and roof slab are both types of concrete slabs used in construction.

A floor slab is a horizontal structural element that forms the bottom surface of a building’s floor. It is typically made of reinforced concrete and is supported by beams, columns, or walls. Floor slabs are designed to withstand the weight of the building and the occupants, as well as any furniture or equipment that may be placed on them.

A roof slab is also a horizontal structural element, but it forms the top surface of a building’s roof. Like floor slabs, roof slabs are typically made of reinforced concrete and are supported by beams, columns, or walls. Roof slabs are designed to provide a waterproof barrier between the interior of the building and the elements outside, and they may also be designed to support the weight of equipment such as HVAC systems, solar panels, or green roofs.

Both floor slabs and roof slabs are critical components of a building’s structure, and their design and construction must take into account the specific needs and requirements of the building and its occupants.

What’s a concrete slab floor?

A concrete slab floor is a common type of flooring used in construction. It is made by pouring a thick layer of concrete onto a prepared surface, such as compacted soil or gravel, and then smoothing it out and letting it cure and harden.

Concrete slab floors can be used in a variety of settings, including homes, commercial buildings, and industrial facilities. They are often used in areas where a durable, long-lasting flooring material is needed, such as garages, basements, warehouses, and factories.

Concrete slab floors have several advantages over other types of flooring. They are strong, durable, and can support heavy loads. They are also relatively low-maintenance and can be easily cleaned. Additionally, they can be customized with various finishes, such as staining, polishing, or stamping, to create a decorative or textured surface.

What are the types of slabs?

In civil engineering, slabs are structural elements that provide a flat surface, typically horizontal, to support the loads from above. There are several types of slabs, including:

  1. One-way slab: A one-way slab is a type of slab in which the main reinforcement is placed in one direction only. These slabs are usually used in rectangular or square shapes.
  2. Two-way slab: A two-way slab is a type of slab in which the main reinforcement is placed in both directions. This type of slab is commonly used for larger areas or when the dimensions are not rectangular.
  3. Flat slab: A flat slab is a type of slab without beams, and the loads are directly transferred to the columns. The thickness of the flat slab is usually larger than that of a conventional slab.
  4. Ribbed slab: A ribbed slab is a type of slab that has ribs on its underside. These ribs help to reduce the weight of the slab and also improve the strength of the slab.
  5. Waffle slab: A waffle slab is a type of slab that has a grid-like pattern of reinforced concrete ribs on both its upper and lower surfaces, creating a waffle-like appearance. This type of slab is used for large areas and helps to reduce the weight of the structure.
  6. Post-tensioned slab: A post-tensioned slab is a type of slab that has tensioned cables or tendons placed in the slab. These tendons are then tensioned after the concrete has cured to increase the strength of the slab.

The selection of a particular type of slab depends on several factors, including the span of the slab, the type and magnitude of the loads, the architectural design requirements, and the budget.
